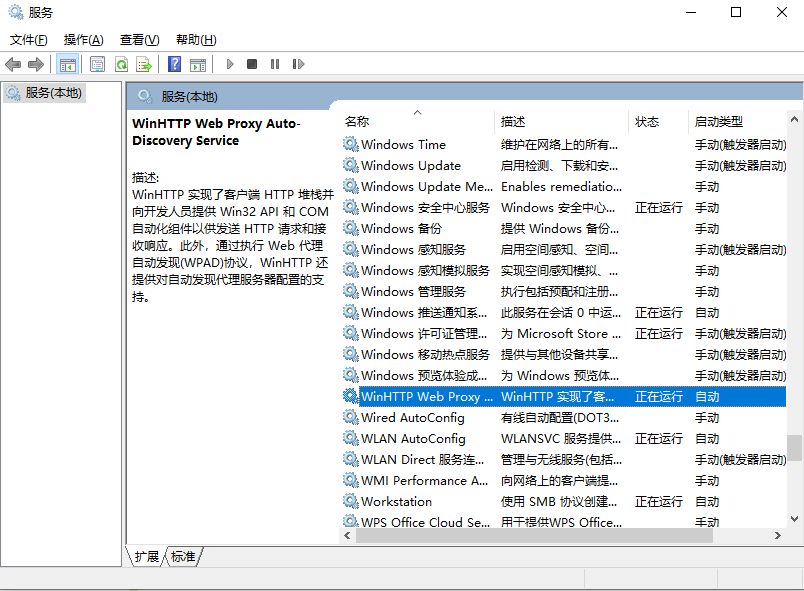

1.打开“服务”面板，找到 WinHttpAutoProxySvc 服务，有的人会显示 WinHTTP Web Proxy Auto-Discovery Service

我们首先看看能不能找到这个服务，先看看该服务是否处于禁用状态（正常都是启用没问题的，可能是用过些什么优化软件把该服务禁用了），如果是禁用就尝试将它修改为启动状态，随后重启电脑即可；如果是没有该服务，也没关系，我们可以手动创建一下！

2.在命令提示符里面创建语句,需要管理员权限才可以执行成功！

sc create WinHttpAutoProxySvc binPath= "C:WINDOWSsystem32svchost.exe -k LocalServiceNetworkRestricted -p"
sc config WinHttpAutoProxySvc start= AUTO
net start WinHttpAutoProxySvc

3.新建一个文件，将以下内容输入进去并将文件保存为.reg格式，然后执行，完事重启即可

Windows Registry Editor Version 5.00
[HKEY_LOCAL_MACHINESYSTEMControlSet001ServicesEventLogSystemWinHttpAutoProxySvc]
"EventMessageFile"="$(runtime.system32)\winhttp.dll"
"ProviderGuid"="{7D44233D-3055-4B9C-BA64-0D47CA40A232}"
"TypesSupported"=dword:00000007
[HKEY_LOCAL_MACHINESYSTEMControlSet001ServicesWinHttpAutoProxySvc]
"DependOnService"=hex(7):44,00,68,00,63,00,70,00,00,00,00,00
"Description"="@%SystemRoot%\system32\winhttp.dll,-101"
"DisplayName"="@%SystemRoot%\system32\winhttp.dll,-100"
"ErrorControl"=dword:00000001
"FailureActions"=hex:00,5c,26,05,00,00,00,00,00,00,00,00,03,00,00,00,14,00,00,
  00,01,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00
"ImagePath"=hex(2):25,00,53,00,79,00,73,00,74,00,65,00,6d,00,52,00,6f,00,6f,00,
  74,00,25,00,5c,00,73,00,79,00,73,00,74,00,65,00,6d,00,33,00,32,00,5c,00,73,
  00,76,00,63,00,68,00,6f,00,73,00,74,00,2e,00,65,00,78,00,65,00,20,00,2d,00,
  6b,00,20,00,4c,00,6f,00,63,00,61,00,6c,00,53,00,65,00,72,00,76,00,69,00,63,
  00,65,00,4e,00,65,00,74,00,77,00,6f,00,72,00,6b,00,52,00,65,00,73,00,74,00,
  72,00,69,00,63,00,74,00,65,00,64,00,20,00,2d,00,70,00,00,00
"ObjectName"="NT AUTHORITY\LocalService"
"RequiredPrivileges"=hex(7):53,00,65,00,43,00,68,00,61,00,6e,00,67,00,65,00,4e,
  00,6f,00,74,00,69,00,66,00,79,00,50,00,72,00,69,00,76,00,69,00,6c,00,65,00,
  67,00,65,00,00,00,53,00,65,00,43,00,72,00,65,00,61,00,74,00,65,00,47,00,6c,
  00,6f,00,62,00,61,00,6c,00,50,00,72,00,69,00,76,00,69,00,6c,00,65,00,67,00,
  65,00,00,00,53,00,65,00,49,00,6d,00,70,00,65,00,72,00,73,00,6f,00,6e,00,61,
  00,74,00,65,00,50,00,72,00,69,00,76,00,69,00,6c,00,65,00,67,00,65,00,00,00,
  00,00
"ServiceSidType"=dword:00000001
"Start"=dword:00000003
"Type"=dword:00000020
[HKEY_LOCAL_MACHINESYSTEMControlSet001ServicesWinHttpAutoProxySvcParameters]
"ProxyDllFile"=hex(2):25,00,53,00,79,00,73,00,74,00,65,00,6d,00,52,00,6f,00,6f,
  00,74,00,25,00,5c,00,73,00,79,00,73,00,74,00,65,00,6d,00,33,00,32,00,5c,00,
  6a,00,73,00,70,00,72,00,6f,00,78,00,79,00,2e,00,64,00,6c,00,6c,00,00,00
"ServiceDll"=hex(2):25,00,53,00,79,00,73,00,74,00,65,00,6d,00,52,00,6f,00,6f,
  00,74,00,25,00,5c,00,73,00,79,00,73,00,74,00,65,00,6d,00,33,00,32,00,5c,00,
  77,00,69,00,6e,00,68,00,74,00,74,00,70,00,2e,00,64,00,6c,00,6c,00,00,00
"ServiceDllUnloadOnStop"=dword:00000001
"ServiceMain"="WinHttpAutoProxySvcMain"

[HKEY_LOCAL_MACHINESYSTEMControlSet001ServicesWinHttpAutoProxySvcSecurity]
"Security"=hex:01,00,14,80,00,01,00,00,0c,01,00,00,14,00,00,00,30,00,00,00,02,
  00,1c,00,01,00,00,00,02,80,14,00,9d,00,03,00,01,01,00,00,00,00,00,01,00,00,
  00,00,02,00,d0,00,09,00,00,00,00,00,14,00,9d,00,03,00,01,01,00,00,00,00,00,
  05,12,00,00,00,00,00,18,00,9d,00,03,00,01,02,00,00,00,00,00,05,20,00,00,00,
  20,02,00,00,00,00,14,00,9d,00,02,00,01,01,00,00,00,00,00,05,0b,00,00,00,00,
  00,14,00,9d,00,02,00,01,01,00,00,00,00,00,05,04,00,00,00,00,00,14,00,9d,00,
  02,00,01,01,00,00,00,00,00,05,06,00,00,00,00,00,18,00,94,00,00,00,01,02,00,
  00,00,00,00,0f,02,00,00,00,01,00,00,00,00,00,18,00,94,00,00,00,01,02,00,00,
  00,00,00,0f,03,00,00,00,01,00,00,00,00,00,18,00,94,00,00,00,01,02,00,00,00,
  00,00,0f,03,00,00,00,02,00,00,00,00,00,18,00,94,00,00,00,01,02,00,00,00,00,
  00,0f,03,00,00,00,03,00,00,00,01,01,00,00,00,00,00,05,12,00,00,00,01,01,00,
  00,00,00,00,05,12,00,00,00

4.如果你发现你有这个服务，但是被禁用，而且无法开启怎么办？？？没关系，注册表来帮你！

首先确保您登录的账户是管理员账户，尝试在注册表中设置启用该服务，在修改注册表之前，请注意备份好您的注册表。

一、打开注册表编辑器（开始-运行-输入regeidt）

二、找到路径ComputerHKEY_LOCAL_MACHINESYSTEMCurrentControlSetServicesWinHttpAutoProxySvc

三、在右边找到一个名为Start的设置

四、将她的值设置为2（2为自动启动），随后重启计算机检查该服务是否为运行状态

然后你就会发现，设置代理已经完全没毛病！
